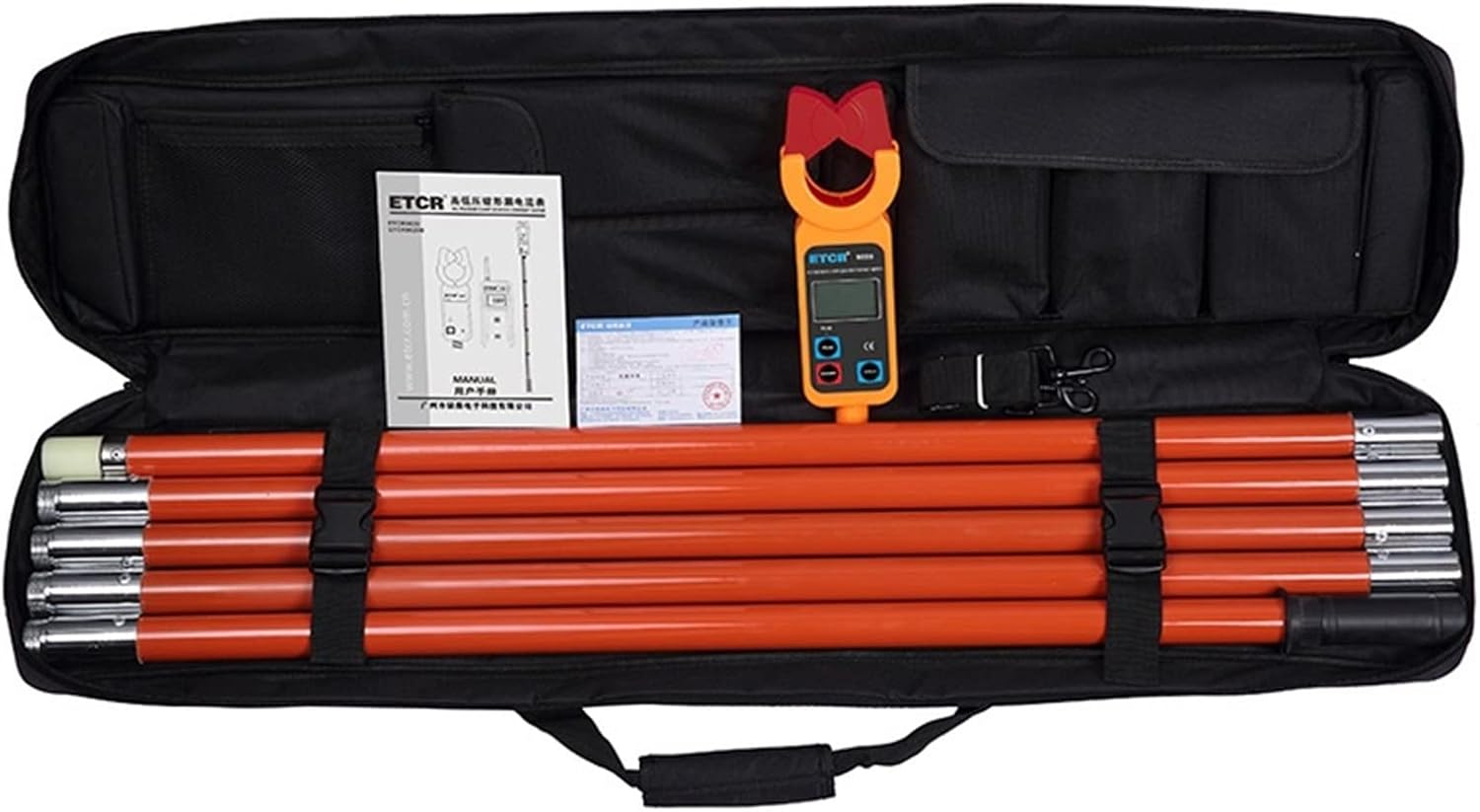

Insulation Resistance Tester, High Voltage Clamp Ammeter 0.01mA Clamp High Voltage Leakage Meter 60kV High Altitude Ammeter ETCR9020

Feature:1. The current clamp adopts magnetic shield and CT digital integration technology, with strong anti-interference, high accuracy and stable test.2. The innovative automatic and pull structure makes the meter easy to clamp or withdraw the tested wire by pressing or pulling the insulation rod, saving time and convenient.3. Peak hold, data hold and data memory function.Technical Specification：Model：ETCR9020 H/L Voltage Clamp Leakage Current MeterMeasurement Range：AC 0.00mA~60.0ATest Accuracy：0.00mA~999mA: ±1%±5dgt 1.00A~60.0A: ±1.5%±5dgt CT Size：dia 48mmMeter Dimension：76mm×255mm×31mmMeter Weight：3450g (include insulation rod)Power Supply：6V DC(LR03×4pcs alkaline dry batteries)LCD Dimension：47mm×28.5mmSampling Rate：2 times/sCommunication Mode：Wireless transmission, straight distance 30m (only for ETCR9020B)PEAK Hold：Automatically hold the highest test value (only for ETCR9020)Data Hold：In usual test mode, press HOLD key to keep data, “HOLD” symbol displayData Storage：99 groups , stored process display MEM symbol, “FULL” symbol display indicate that storage fullData Access：“MR” symbol indication, can access all storage dataOverflow Display：Exceed measure range overflow function: “OL A” symbol displayAutomatic Shut Down：15 minutes after boot up, the meter shuts down automatically without any operation, to reduce battery consumptionBattery Voltage：When battery voltage is lower than 4.8V, low battery voltage symbol “” display and remind to replace battery.Line Voltage：Below 60kV current test with insulated skin wire; below 35kV bare wire test (operate with insulation rods)Insulation Rod Dimension：dia 32mm 1M x 5PCSInsulation Rod Withstand Voltage：110KV ( 5PCS insulation rod connection)Working Temperature：-10℃~50℃;below 80%RhAccessories：Meter: 1PCS; Insulation rod (1m): 5PCS; Tool bag: 1SET

• ★High-precision technology, high measurement accuracy, strong reliability, and bandwidth response frequency
• ★High-quality materials, stronger anti-interference performance
• ★Specially designed and manufactured for on-site online testing, monitoring, and recording of AC leakage current and large current
• ★It is especially suitable for current testing in places with dense cables, core current test of transformers connected to the wall by subway, testing of thick wires and cables, relay protection, power electronic conversion equipment, arc welding and other industrial environments where the signal is severely distorted.
• ★Its small size, light weight, exquisite appearance, soft and flexible, suitable for narrow environments and places with dense cables
